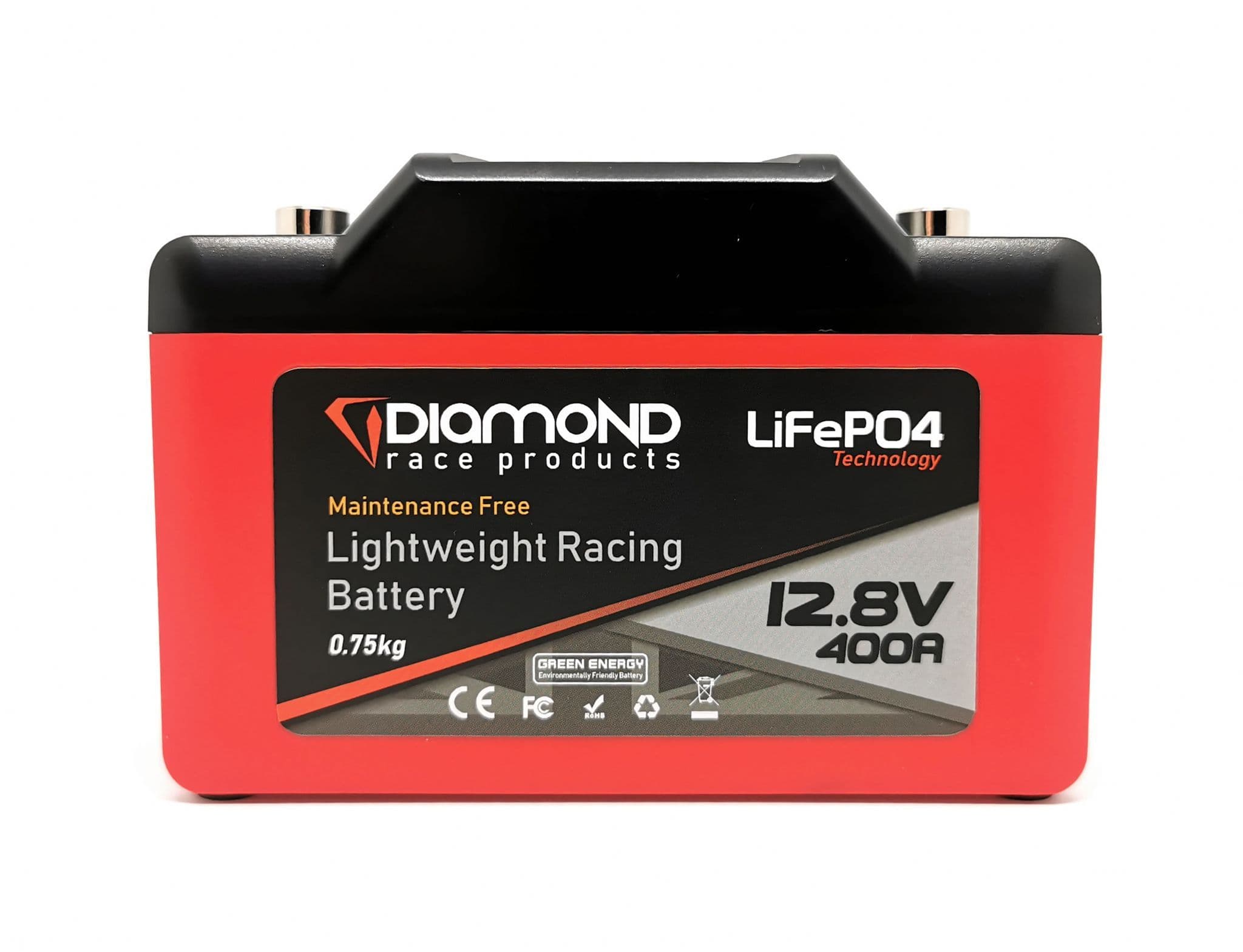

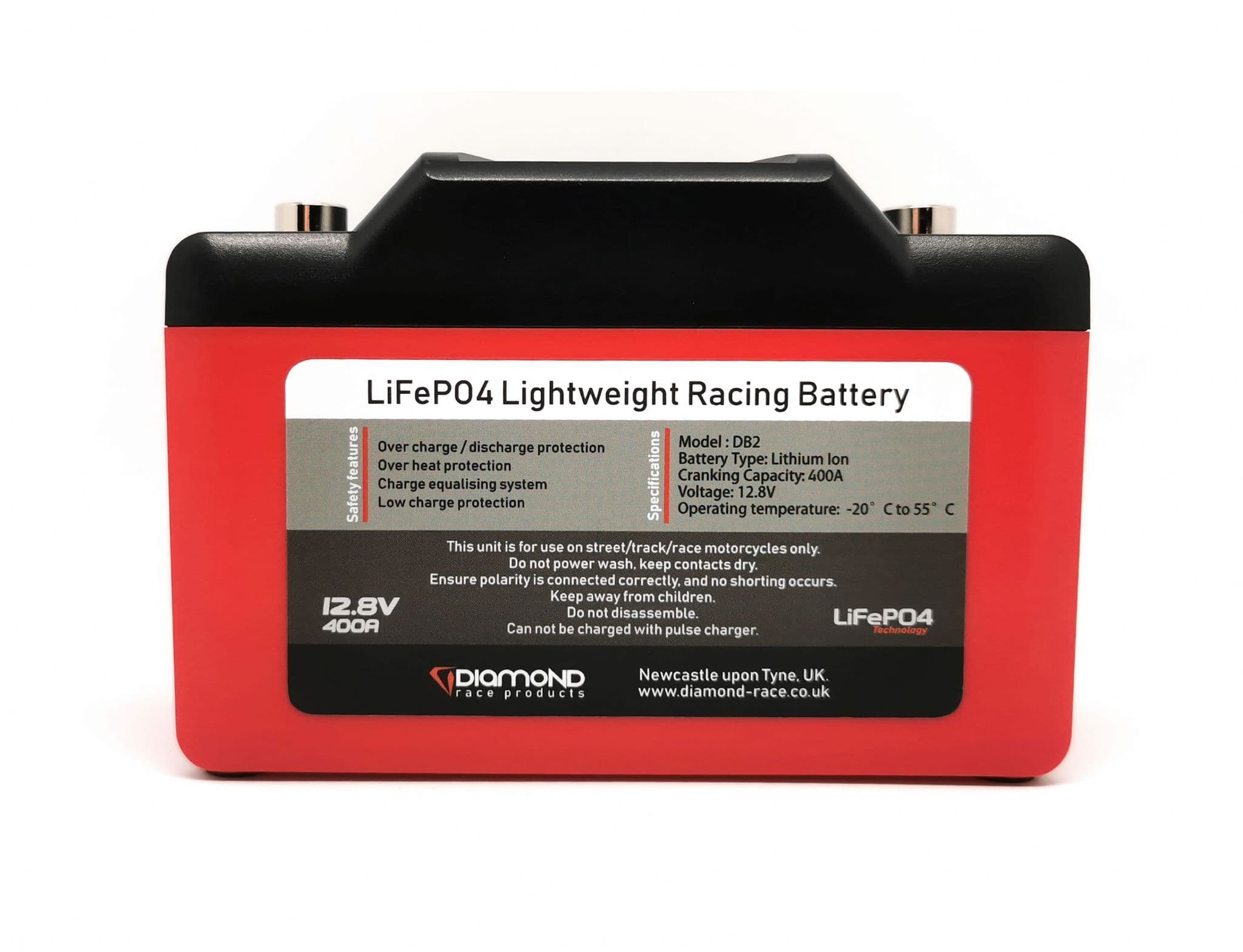

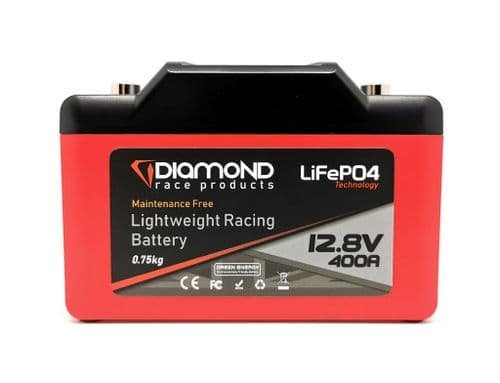

Diamond DB2 Battery - 400A

Diamond Lightweight Motorcycle Racing Batteries
Model: DB-2 (Replacement for YTZ-10S and similar batteries, see chart below)

Diamond Lightweight Racing Batteries are designed to be a huge upgrade over the now outdated lead acid and gel type batteries fitted to most motorcycles today - Featuring the latest ultra reliable Lithium Ion Phosphate (LiFePO4) cell technology and integrated smart chip to provide protection against a multitude of battery damaging incidents, meaning HUGE weight savings, improved performance, and a massively extended service life.

Worked into the strong yet sleek long-fibre ABS outer body of the battery, is a click activated power status monitor/indicator and outer lugs for mounting with a strap or o-rings.

This item takes only a few minutes to fit – Our fitting guides are located here.

Specifications

- Lithium Ion - LiFePo4 technology.
- Twice the service life of OEM fitted lead acid batteries.
- Extremely lightweight, up to 75% weight saving over OEM.
- Durable ABS casing incorporates lugs on each side of unit for use in O-Ring fastened applications.
- One click charge status monitor/indicator.
- Includes stainless screws, washers and spring washers.
- Over charge / discharge protection.
- Over heat protection.
- Charge equalising system.
- Low charge protection.
- Operating temperature: -20°C to 55°C.
- Voltage: 12.8V.
- Capacity: 4Ah (9.1Ah-16Ah Lead equiv.)
- Cranking Capacity: 400A.
- 12 months warranty.
- Dimensions: 134mm(W) x 65mm(D) x 92mm(H)
- Product weight: 750g.

The Diamond DB2 battery is suitable for replacing the following models:

YT7-BS, YT9-BS, YT-BS, YTX9-BS, YTR9-BS, YB9A-A, YB9-B, 12N9-4B-1, YTZ10S, YTB-BS, YT1B-BS, YTX14AH-BS, YB10AA2, YB12A-A, YB12A-B, YB12B-B2, YB12C-A, YB14-A2, YB14-B2, YB14A-A1, YB14A-A2, 12N12A-4A-1, YB10L-A2, YB10LB, YB10-B2, YTX14AHL-BS, YB10L-BP, YB12AL-A, YB12ALA2, YB14L-A1, YB14L-A2, YB14L-B2, YB16AL-A2, SYB14LA2, SYB14L-B2, 12N10-3A-2, 12N11-3A-1, 12N14-3A.
