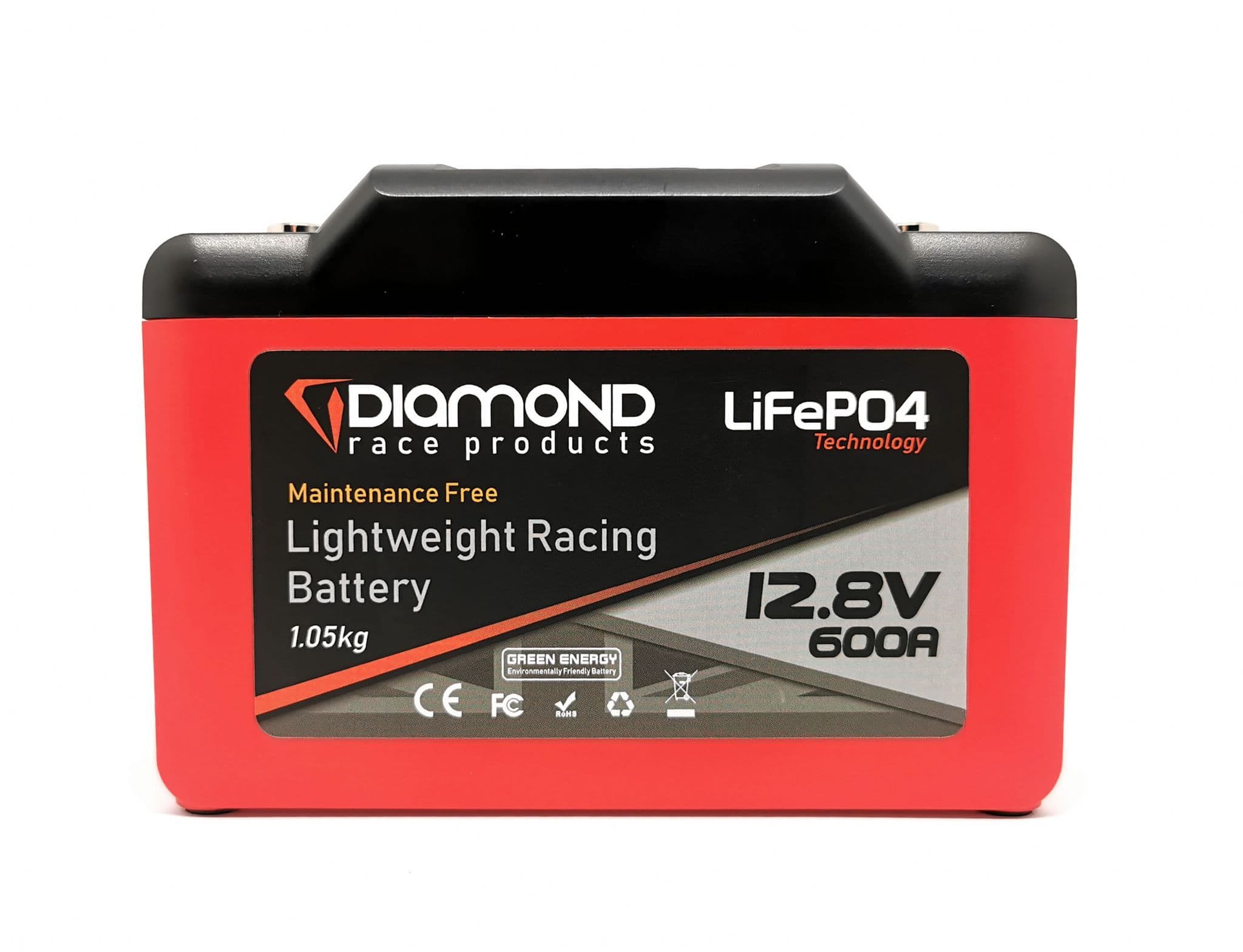

Diamond DB3 Battery - 600A

Diamond Lightweight Motorcycle Racing Batteries
Model: DB-3 (Replacement for YTZ-12S/14S and similar batteries, see chart below)

Diamond Lightweight Racing Batteries are designed to be a huge upgrade over the now outdated lead acid and gel type batteries fitted to most motorcycles today - Featuring the latest ultra reliable Lithium Ion Phosphate (LiFePO4) cell technology and integrated smart chip to provide protection against a multitude of battery damaging incidents, meaning HUGE weight savings, improved performance, and a massively extended service life.

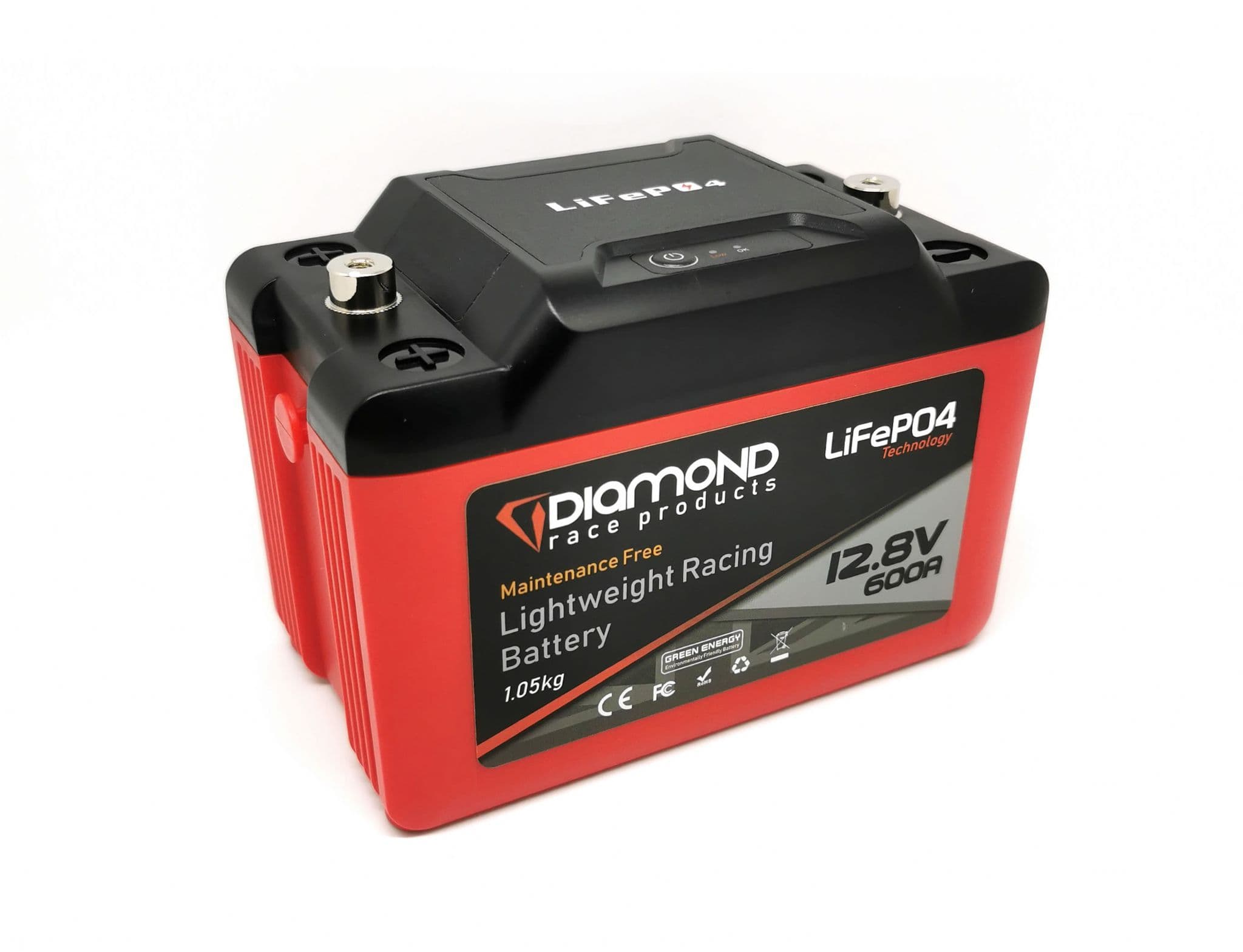

Worked into the strong yet sleek long-fibre ABS outer body of the battery, is a click activated power status monitor/indicator and outer lugs for mounting with a strap or o-rings.

This item takes only a few minutes to fit – Our fitting guides are located here.

Specifications

- Lithium Ion - LiFePo4 technology.
- Twice the service life of OEM fitted lead acid batteries.
- Extremely lightweight, up to 75% weight saving over OEM.
- Durable ABS casing incorporates lugs on each side of unit for use in O-Ring fastened applications.
- One click charge status monitor/indicator.
- Includes stainless screws, washers and spring washers.

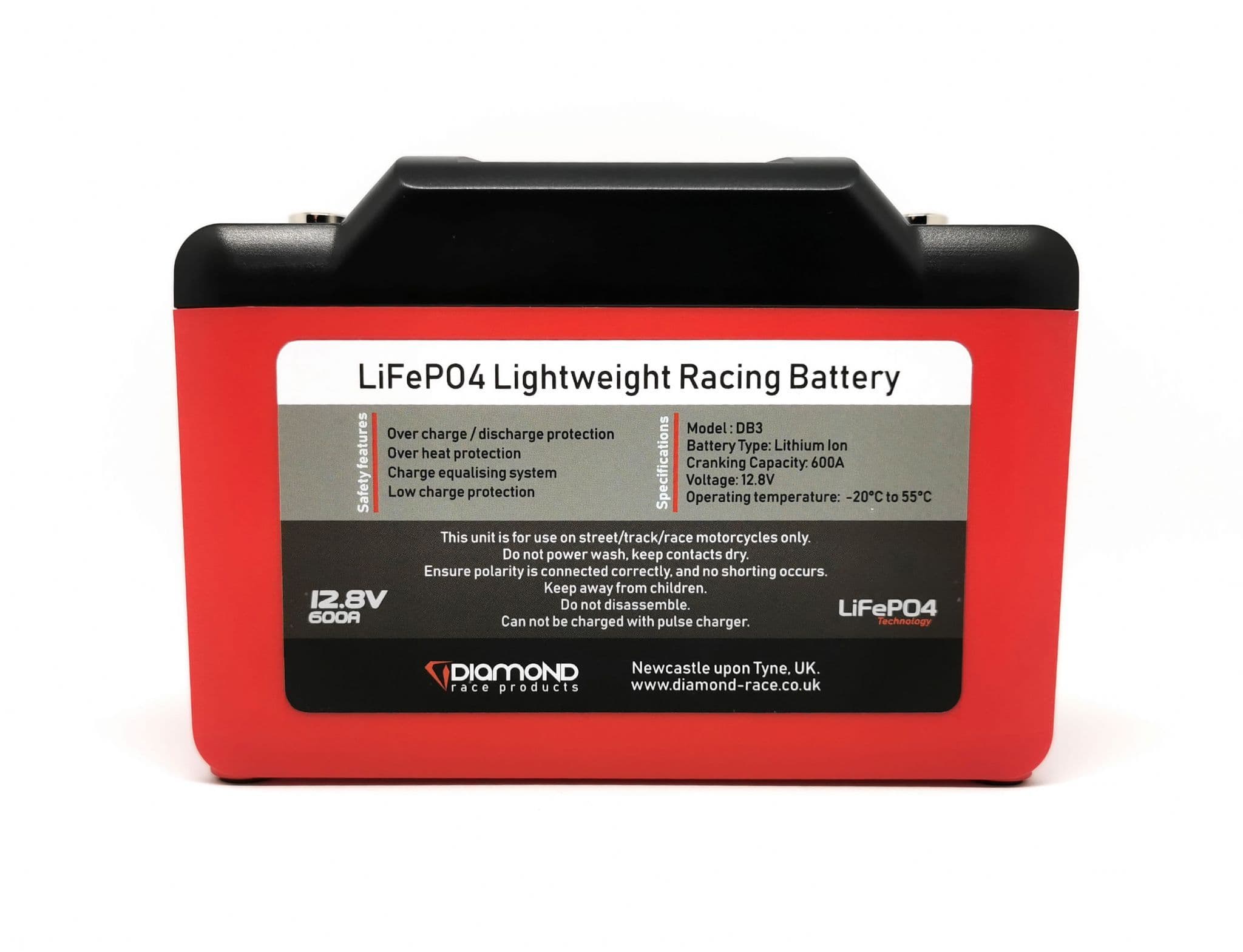

- Over charge / discharge protection.
- Over heat protection.
- Charge equalising system.
- Low charge protection.
- Operating temperature: -20°C to 55°C.
- Voltage: 12.8V.
- Capacity: 6Ah. (11.6Ah-20Ah Lead equiv.)
- Cranking Capacity: 600A.
- 12 months warranty.
- Dimensions: 148mm(W) x 86mm(D) x 105mm(H)
- Product weight: 1050g.

The Diamond DB3 battery is suitable for replacing the following models:

YTZ12S, YTZ14S, YTX12-BS, YTX12A-BS, YTX14-BS, YTX14HBS, KMX14-BS, YTX16-BS, YTX16-BS-1, YB16B-A, YB16BA1, HYB16A-AB, YB16-B, YB16-B-CX, YB16C-B, YB18-A, YTX14L-BS, YTX15L-BS, YTX18L-BS, YB16L-B, YB16CLB, YB16L-A2, YB16HL-A-CX, YB18L-A, YB18L-A2, SYB16L-B, GYZ16, YTX20H-BS, YTX20CH-BS, Y50-N18A-A, ETX14, YTX20L-BS, YTX20HL-BS, YTX24HL-BS, Y50-N18L-A-CX, Y50-N18L-A, Y50-N18L-A2, Y50-N18L-A3, Y50-N18LAT, ETX14L, R1200GSL.
